Product Overview

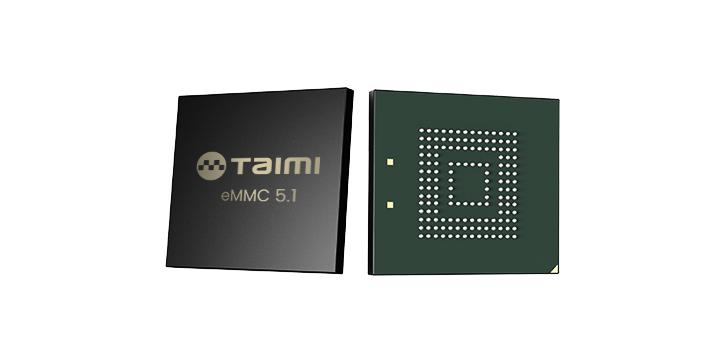

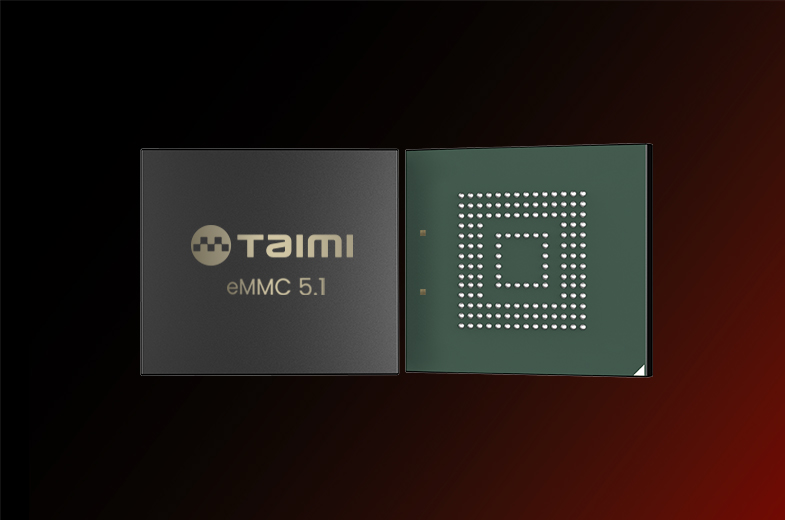

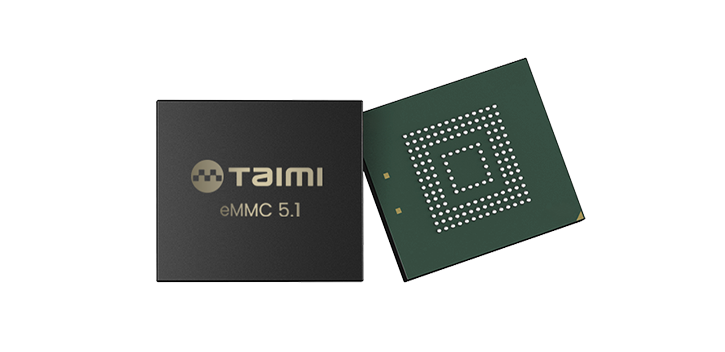

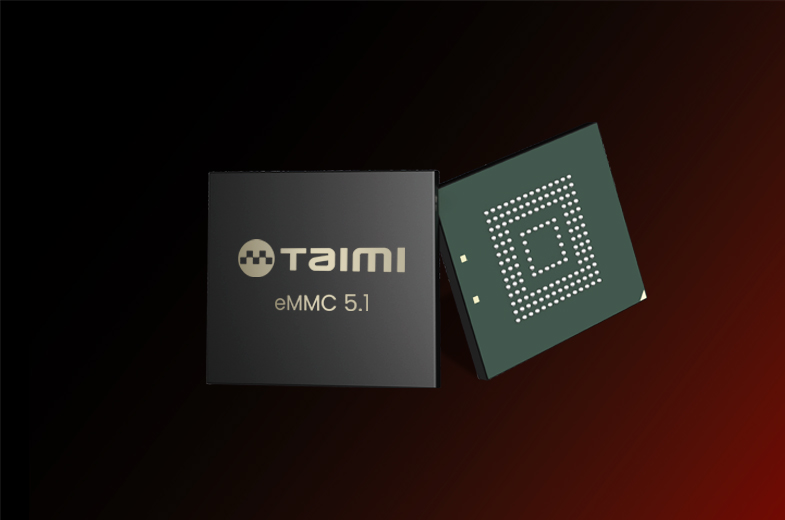

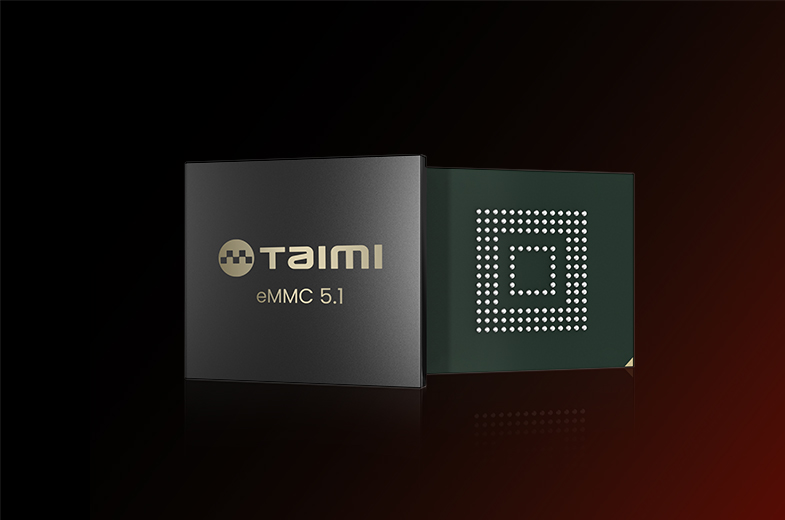

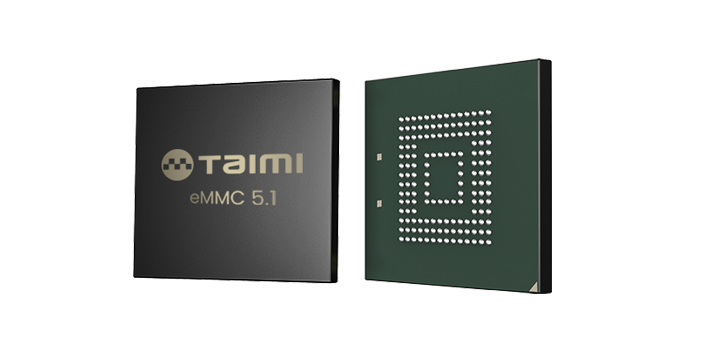

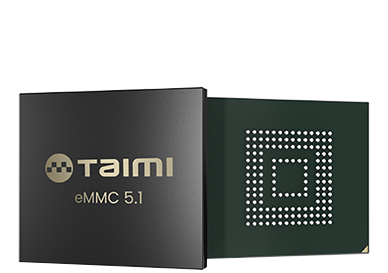

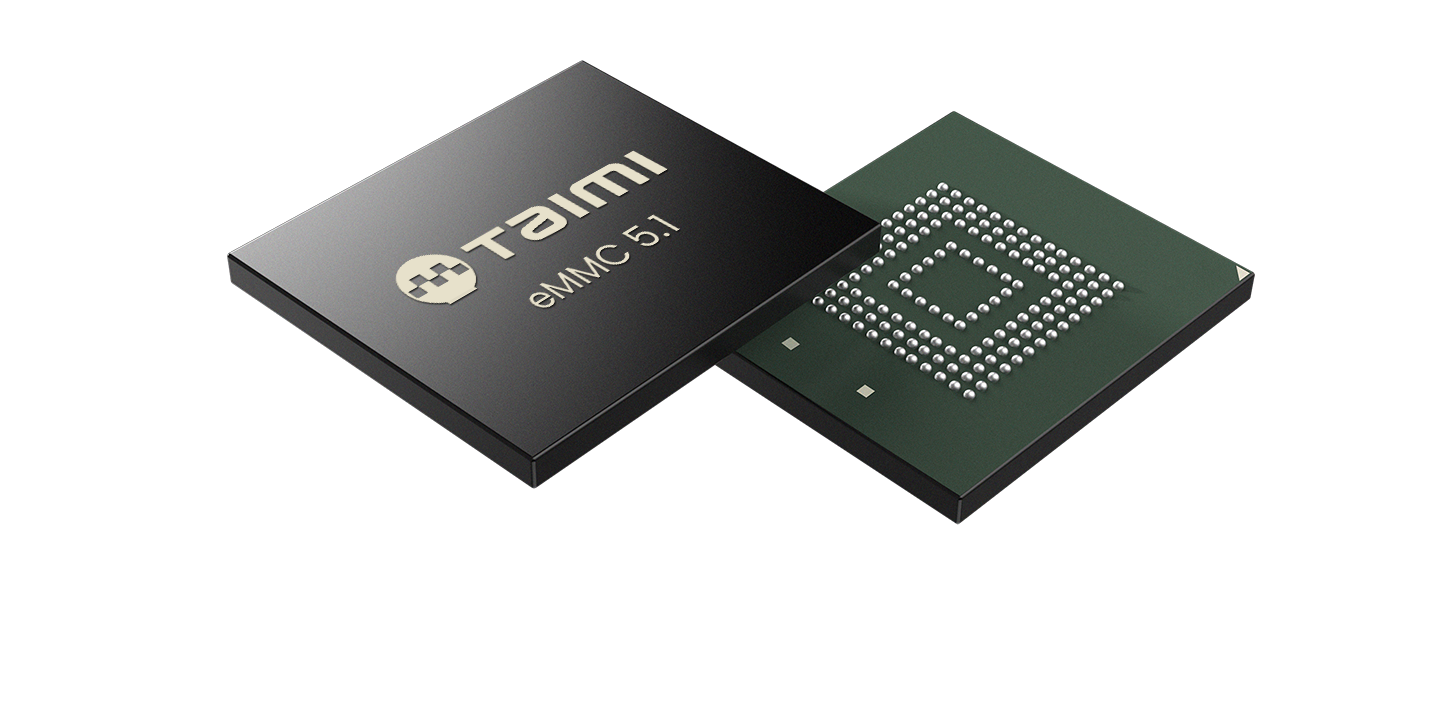

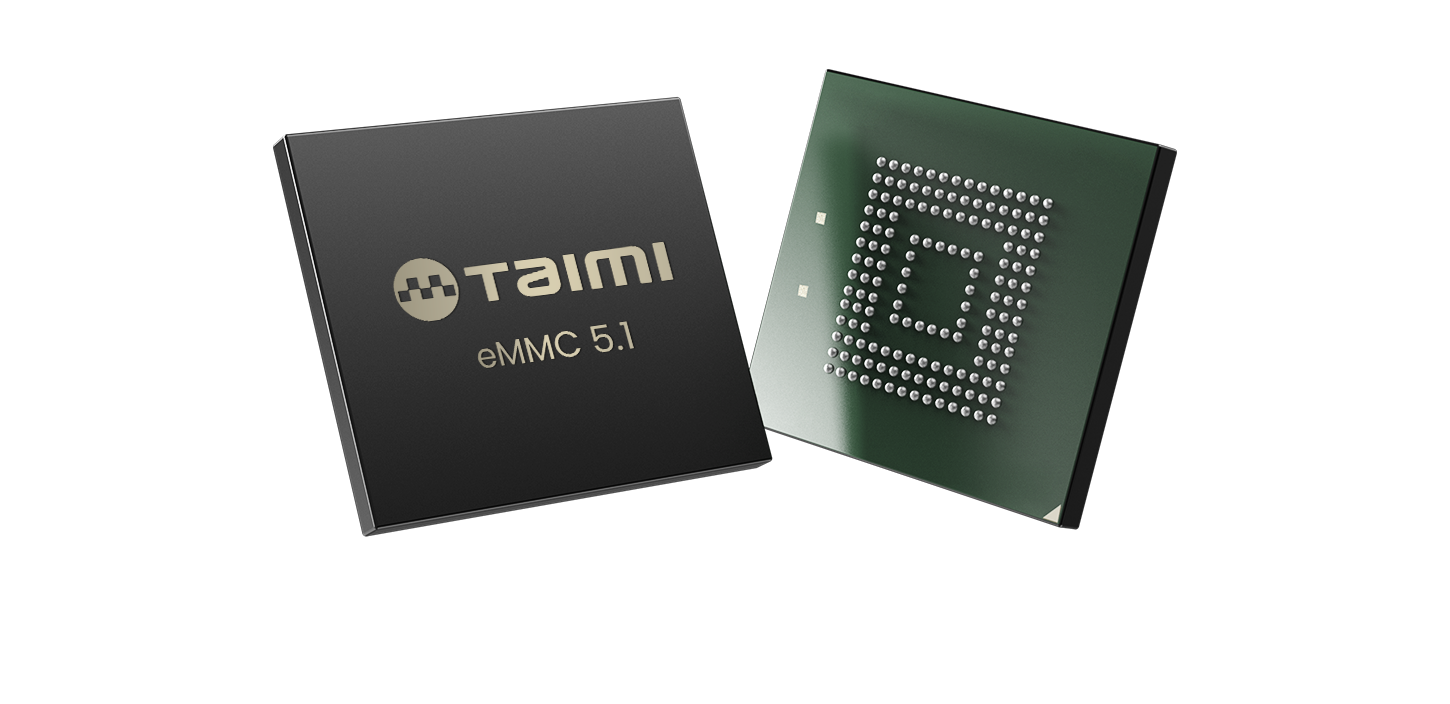

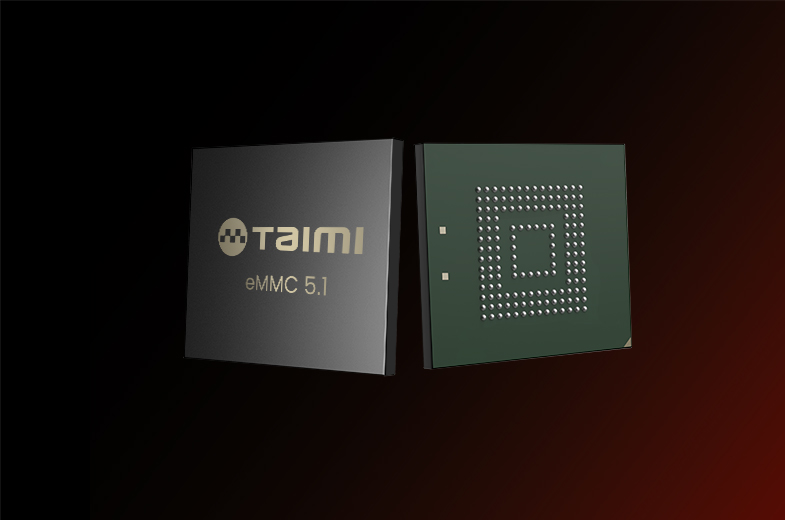

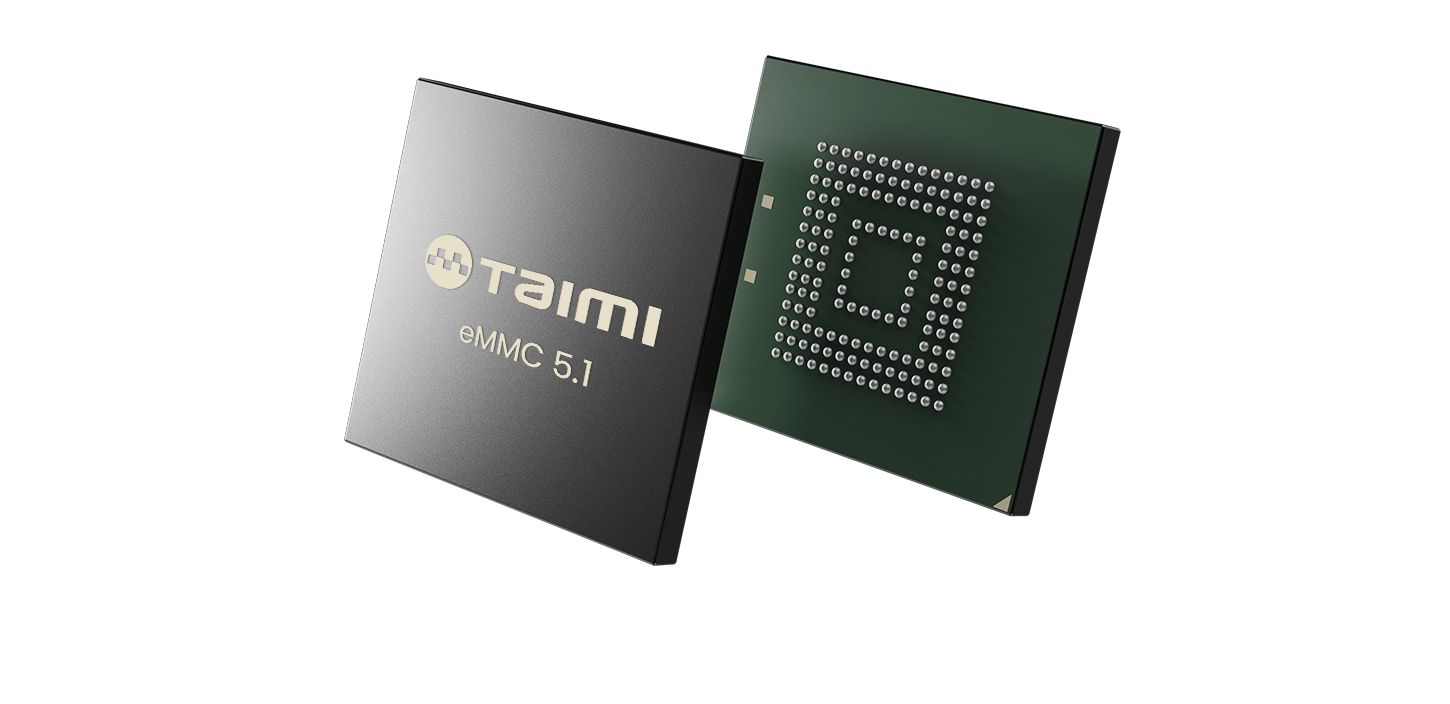

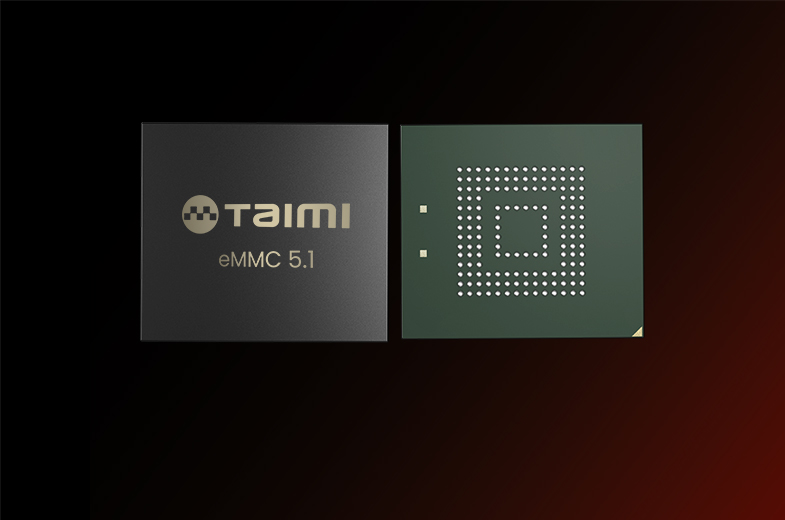

Embedded eMMC chips integrate flash memory and a controller, providing a stable, low-power storage solution for embedded systems.
Performance Features
Integrated Controller, Simplified Design
Supports the eMMC 5.1 standard.
Low power consumption, high stability
Product Advantages
01
Reduce Development Complexity and Costs
02
High reliability, long service life
03
Suitable for space- and power-sensitive devices.
Product Parameters
eMMC 5.1
| Interface / Standard | eMMC 5.1 standard, backward compatible, supports HS400, compliant with JEDEC standards |
| Capacity | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB |
| Package | BGA153 |
| Operating Voltage | VCC=3.3V (2.7V–3.6V), VCCQ=1.8V (1.7V–1.95V) |
| Performance Mode | HS400 mode: up to 400 MB/s (8-bit data bus, 200MHz DDR) |
| HS200 mode: up to 200 MB/s | |
| Sequential Read/Write Performance (Typical) | Up to 320 MB/s (read), 200 MB/s (write) |
| Operating Temperature Range | Commercial grade: -20°C ~ 80°C |
| Reliability | Data retention: >10 years @ 30°C |
| Endurance: TLC (3K P/E cycles), MLC (5K P/E cycles) | |
| Features | Write protection, hardware reset, background operation, secure erase |
| Product Series | Yanjing (Yanji) / “Flame Extreme” Series* |
| Product Model | TEMXXC032 |
Application Fields
Smart Wearables
Tablet
IoT Devices
Smart Home
Industrial Control Modules
