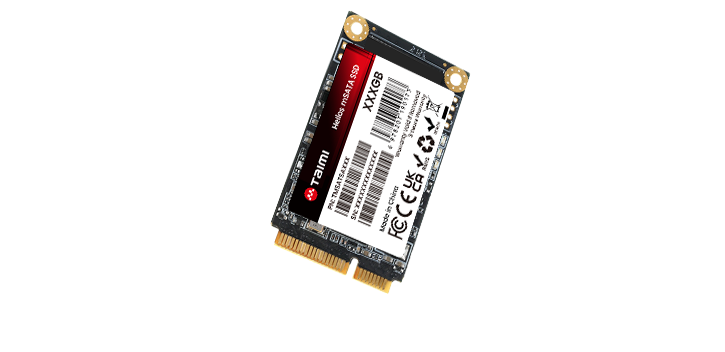

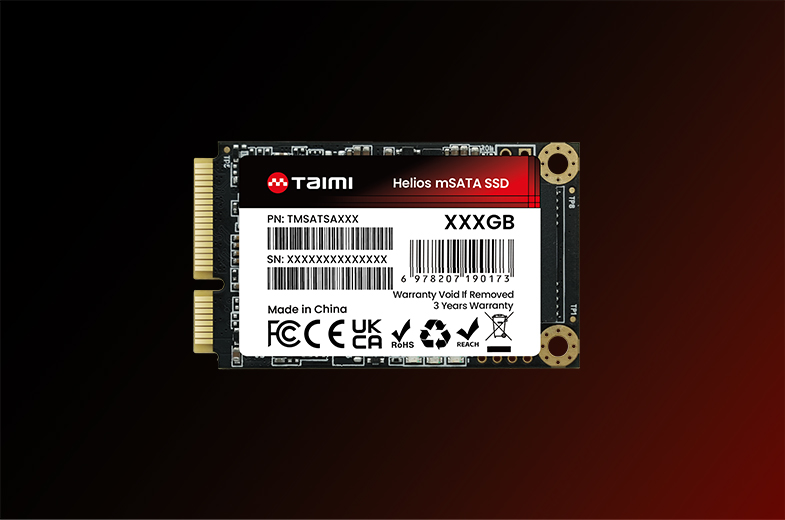

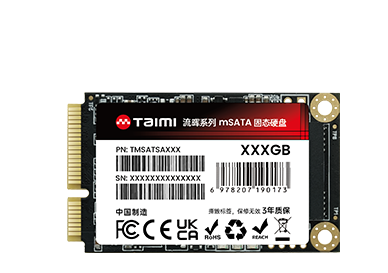

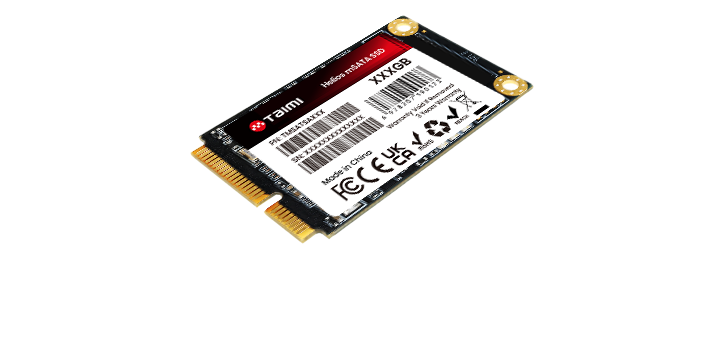

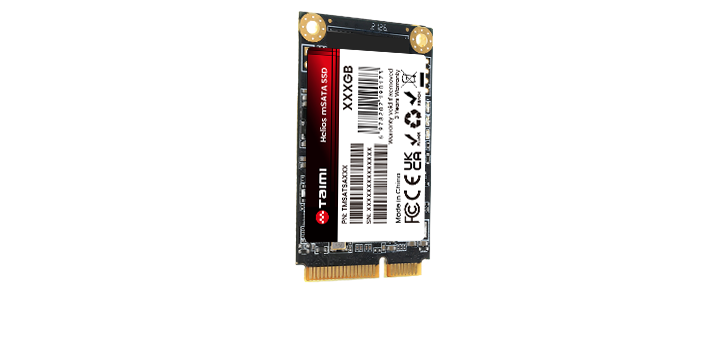

Product Overview
Compact mSATA interface design, suitable for ultra-thin laptops, industrial control devices, and embedded systems, providing efficient storage performance in limited spaces.
Performance Features
Read/write speeds up to 560/510 MB/s
Low latency, fast response.
Supports DEVSLP power-saving mode
Product Advantages
01
Compact and lightweight, space-saving
02
Ideal for space-constrained environments
03
High stability and low heat generation

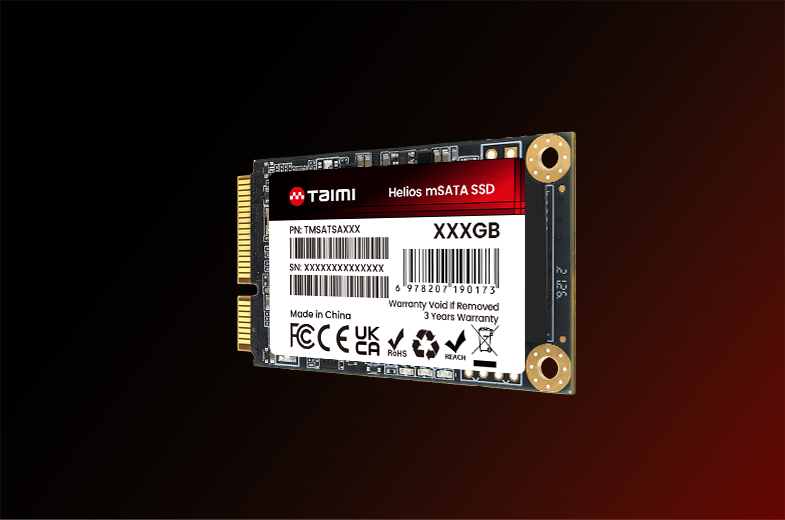

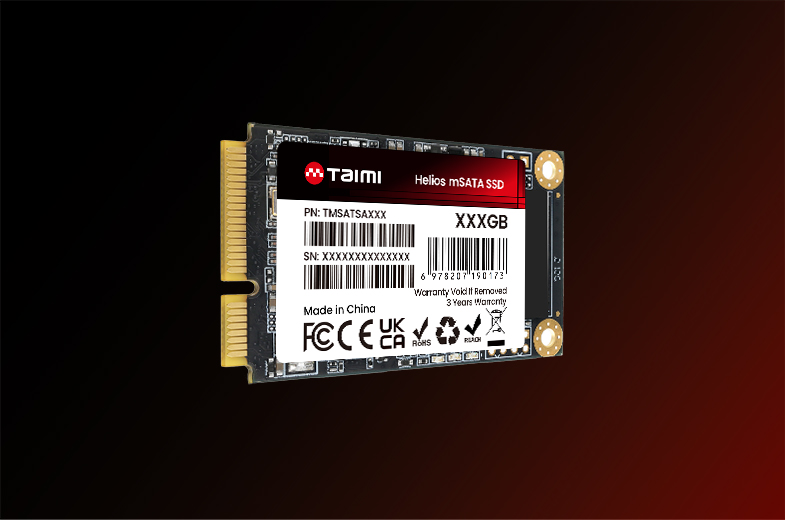

Product Parameters
mSATA
| Series | Helios |
| P/N | TMSATSAXXX |
| Interface | mSATA (based on SATAIII 6Gb/s protocol) |
| Capacity | 128GB, 256GB, 512GB, 1TB, 2TB |
| NAND | 3D NAND |
| Seq Read/Write | Up to 550/500MB/s |
| 4K Random Read/Write | Up to 85K/75K IOPS |
| Dimension (LxWxH) | 50.8×29.85×3.85 mm |
| Working Voltage | 3.3V ±5% |
| Operating Temp. | 0°C~70°C |
| Storage Temp. | -40°C~85°C |
| Durability (TBW) | 128GB: 70TBW, 256GB: 140TBW, 512GB: 240TBW, 1TB: 480TBW, 2TB: 960TBW |
| Seismic Resistance | 1500G/0.5ms during operation, 5000G during non-operation |
| MTBF | >1,500,000 hours |
| Warranty | 3 years or corresponding TBW restrictions (whichever comes first) |
Application Fields
Mini PC
Embedded devices
Thin Client
