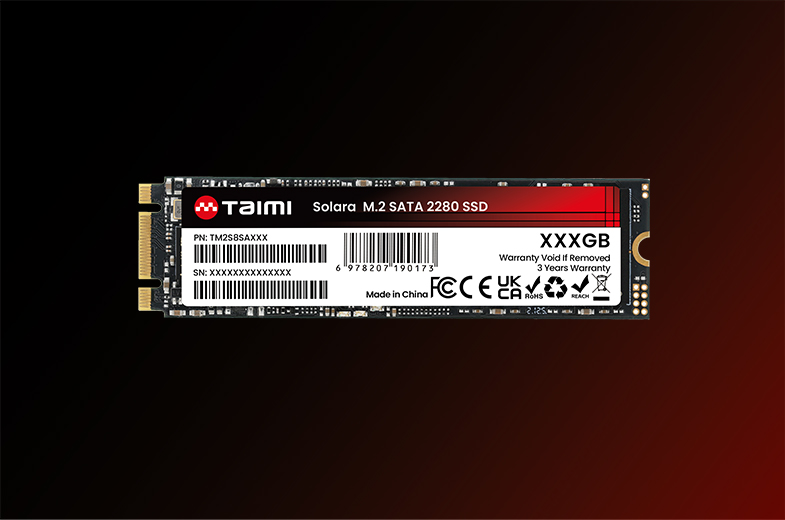

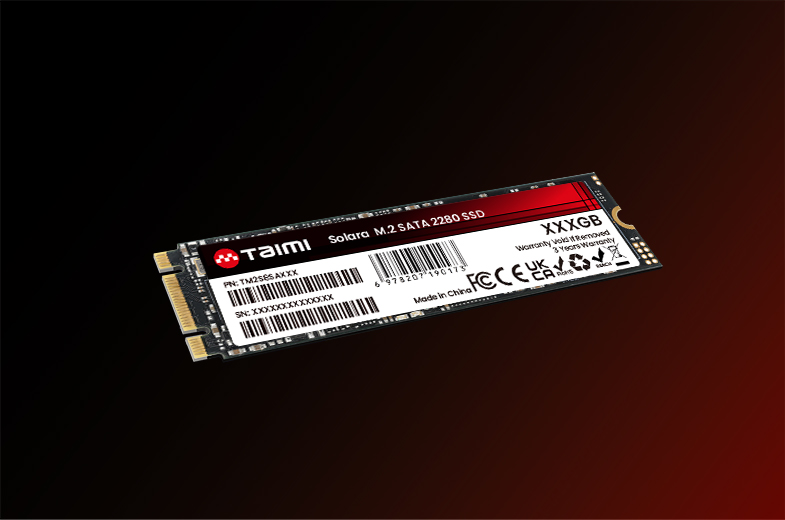

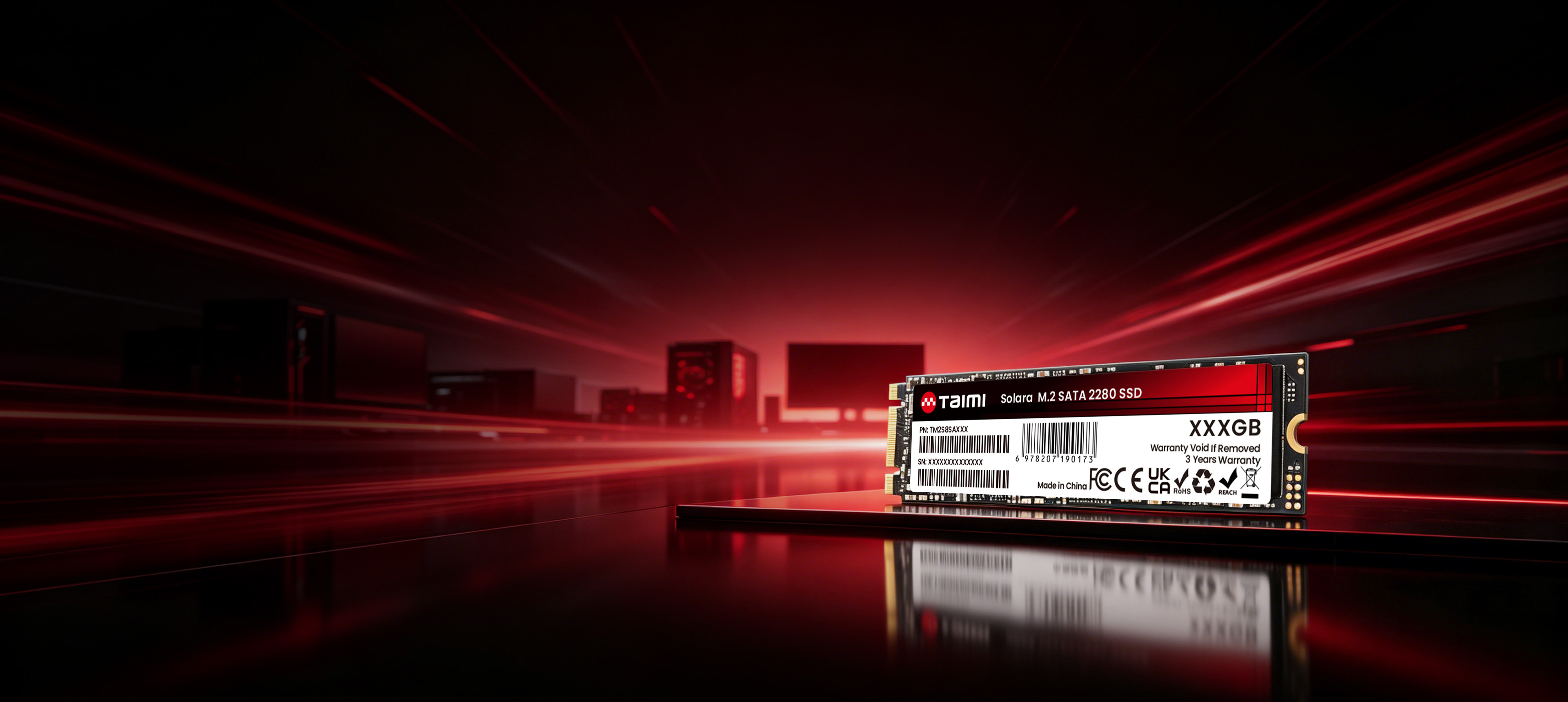

Product Overview
Utilizing the M.2 form factor and SATA protocol, it combines a compact size with reliable performance, making it suitable for motherboards and devices equipped with M.2 slots that are compatible only with the SATA protocol.
Performance Features
Sequential read/write speeds reach 550/500 MB/s.
Supports SATA III 6Gb/s
No moving parts; vibration-resistant.

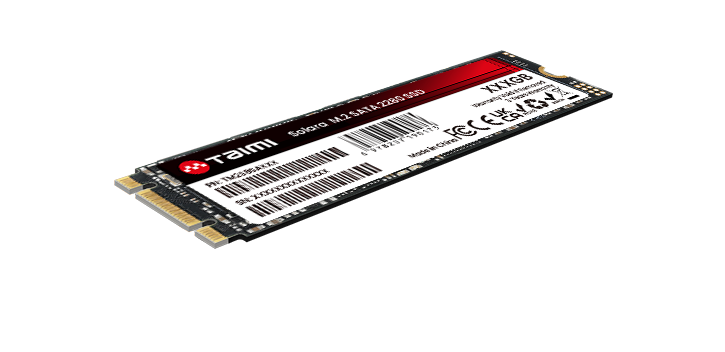

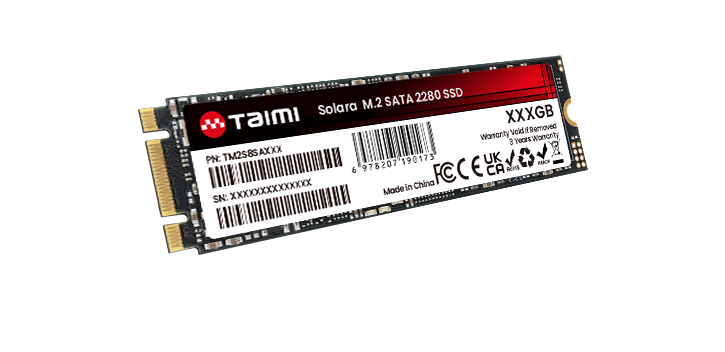

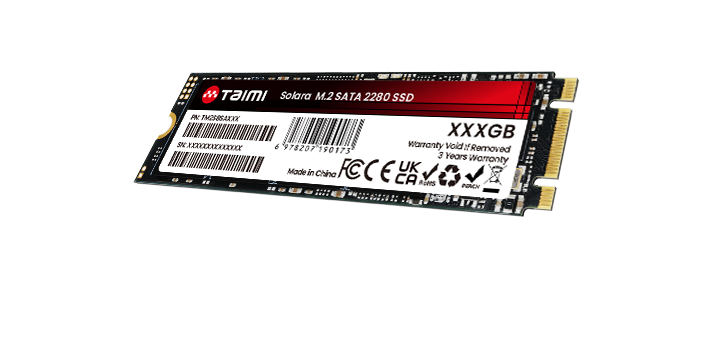

Product Advantages
01

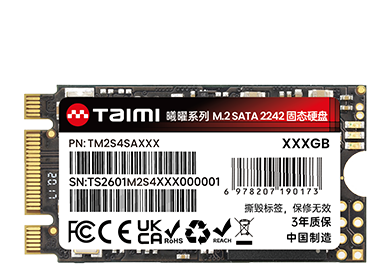

Available in two length specifications for flexible compatibility.
02
Easy to install—plug and play.
03
Cost-Effective SATA Solution

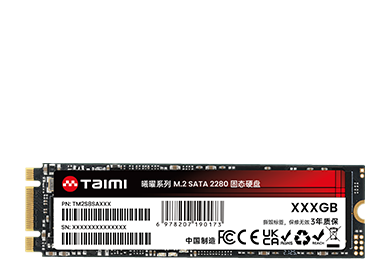

Product Parameters

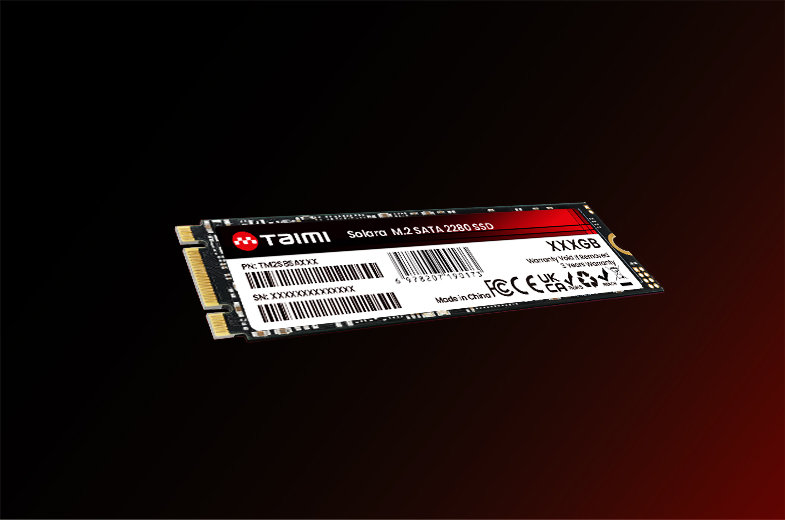

M.2 SATA
| Series | Solara |
| Promethean | TM2S8SAXXX |
| Interface | M.2 B&M Key connector, SATAIII 6Gb/s protocol |
| Capacity | 128GB, 256GB, 512GB, 1TB, 2TB |
| NAND | 3D NAND |
| Seq Read/Write | Up to 550/500MB/s |
| Dimension(LxWxH) | 22×80×2.2 mm |
| Working Voltage | 3.3V ±5% |
| Operating Temp. | 0°C-70°C |
| torage Temp. | -40°C-85°C |
| Durability(TBW) | 128GB: 70TBW, 256GB: 140TBW, 512GB: 240TBW, 1TB: 480TBW, 2TB: 960TBW |
| MTBF | >1,000,000 hours |
| Warranty | 3 years or corresponding TBW restrictions (whichever comes first) |
| Supported Features | Supports TRIM, S.M.A.R.T., NCQ |
Application Fields
NUC Mini PC
Thin and light notebook
Embedded Systems
