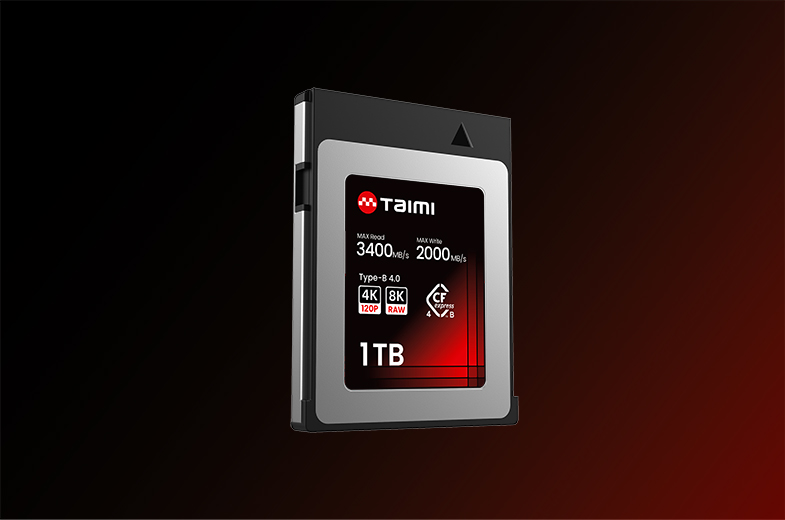

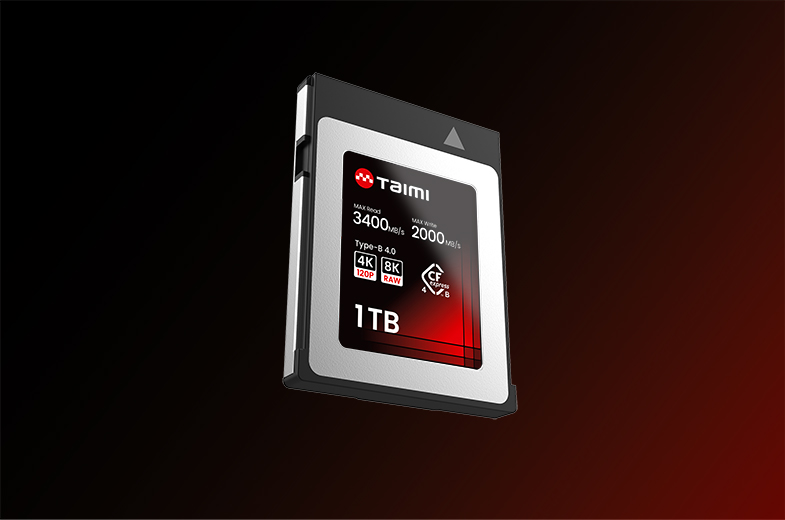

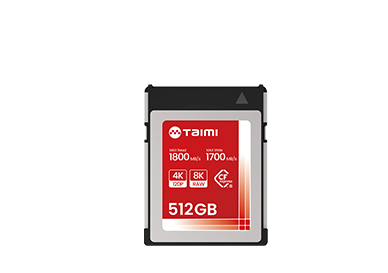

Product Overview
Featuring a CFexpress Type B form factor, PCIe Gen4x2 interface, and NVMe 1.0 protocol, it is fully compatible with CFexpress Type B slot devices and can be used via a card reader on a USB 3.2 Gen2x2 interface.
Performance Features
Read/write speeds up to 1700/1500 MB/s
Supports continuous 4K/8K RAW video recording
Rugged and durable design
Product Advantages
01
Essential for professional imaging equipment
02
High reliability with guaranteed data security
03
Compatible with XQD devices (via adapter)
Product Parameters

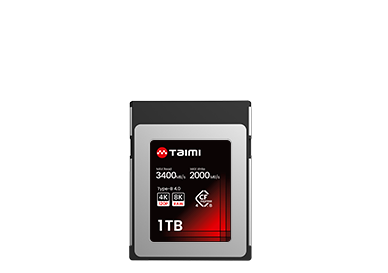

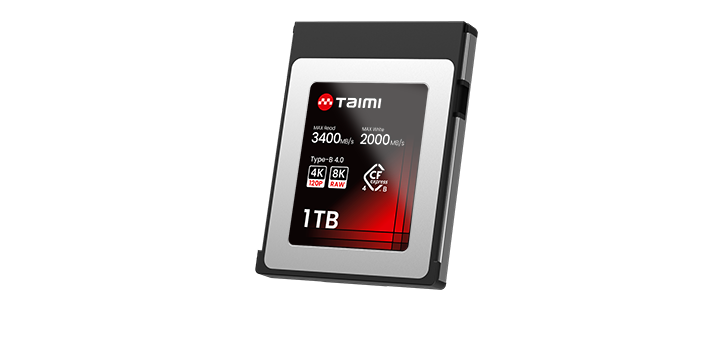

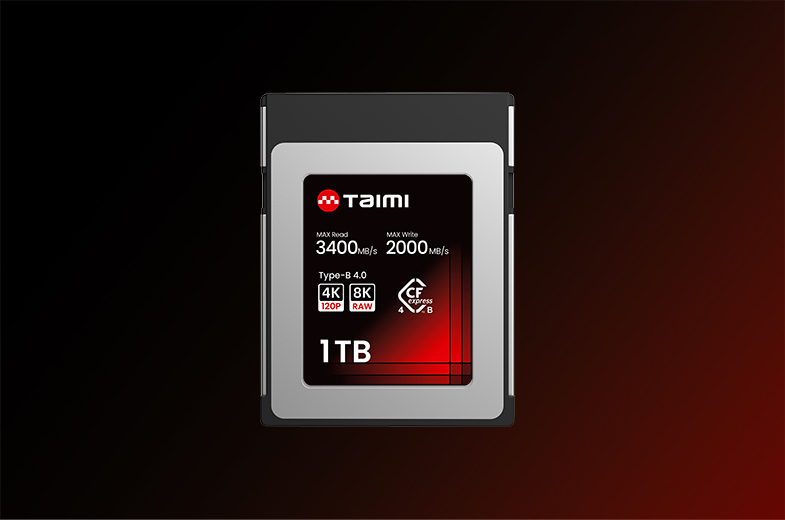

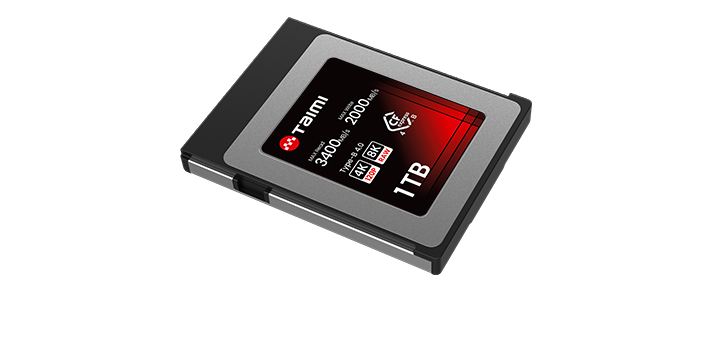

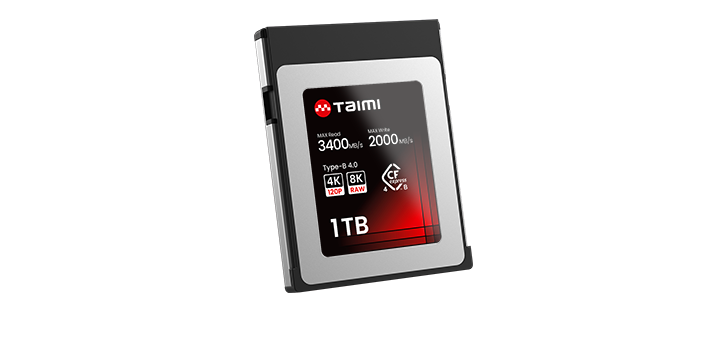

CFexpress Card – Yanchi
| Interface / Protocol | CFexpress Type B form factor, PCIe Gen4×2, NVMe 1.0 protocol |
| Capacity | 256GB, 512GB, 1TB, 2TB, 4TB |
| Speed Class | Compliant with VPG400 (Video Performance Guarantee 400MB/s) standard |
| Sequential Read/Write Speed | Up to 3500 MB/s (Read), 2800 MB/s (Write) |
| Dimensions (L × W × H) | 38.5 × 29.6 × 3.8 mm |
| Operating Temperature | 0℃ – 70℃ |
| Protection Features | Shockproof, impact-resistant, X-ray proof, magnetic resistant, temperature variation resistant |
| Compatibility | Fully compatible with CFexpress Type B slot devices; can be used via card reader on USB 3.2 Gen2×2 interface |
| Warranty | 3 years or corresponding TBW limit (whichever comes first) |
| Product Series | Yanchi Series |
| Model Number | TCFEHTBXXX |
Application Fields
Professional cameras (such as Canon R5, Nikon Z9)

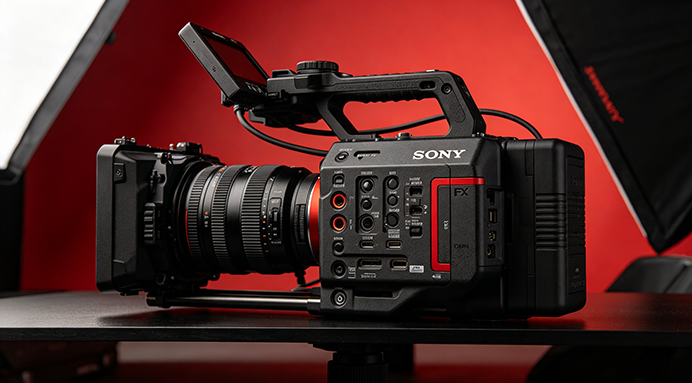

Cinema Camera
